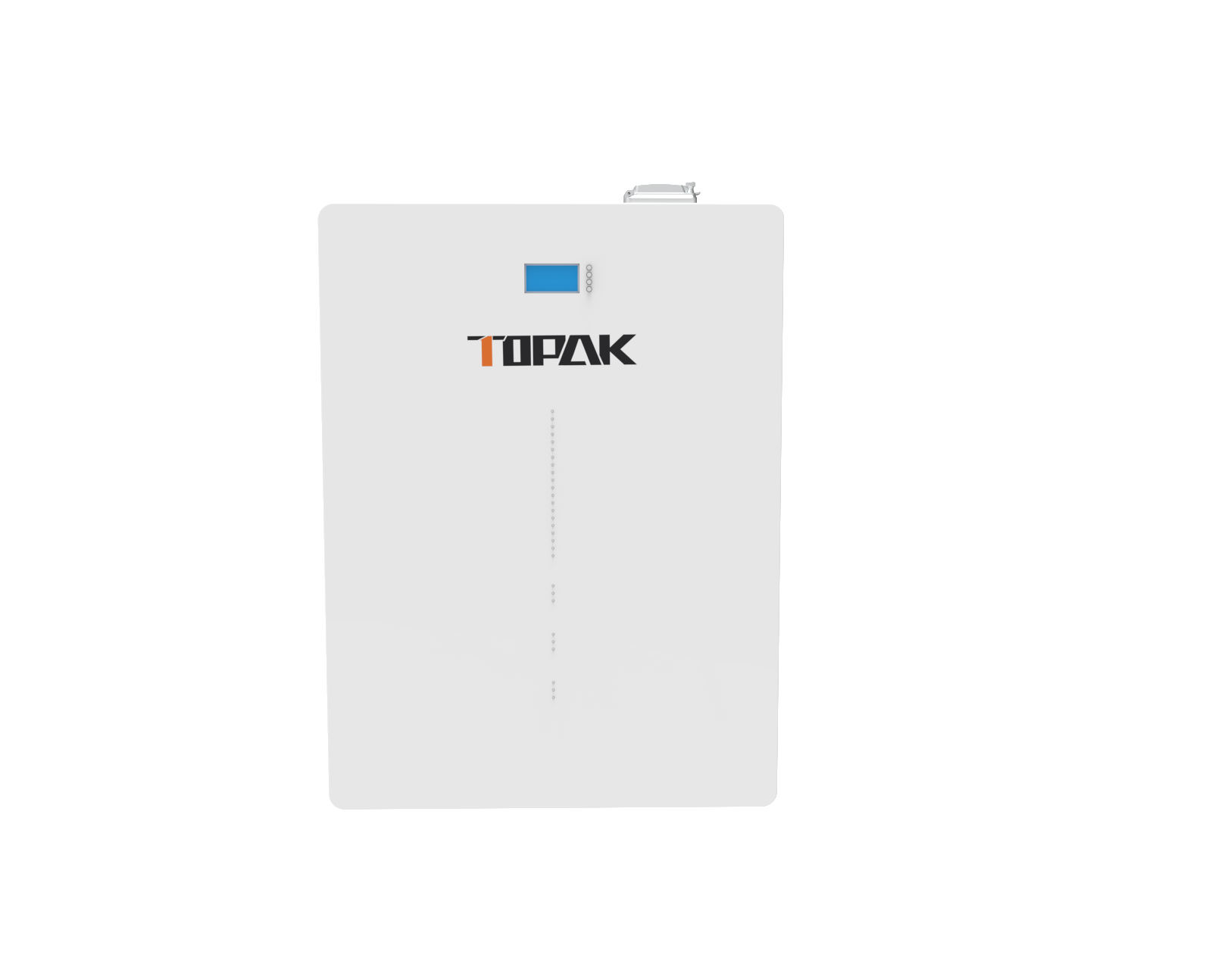

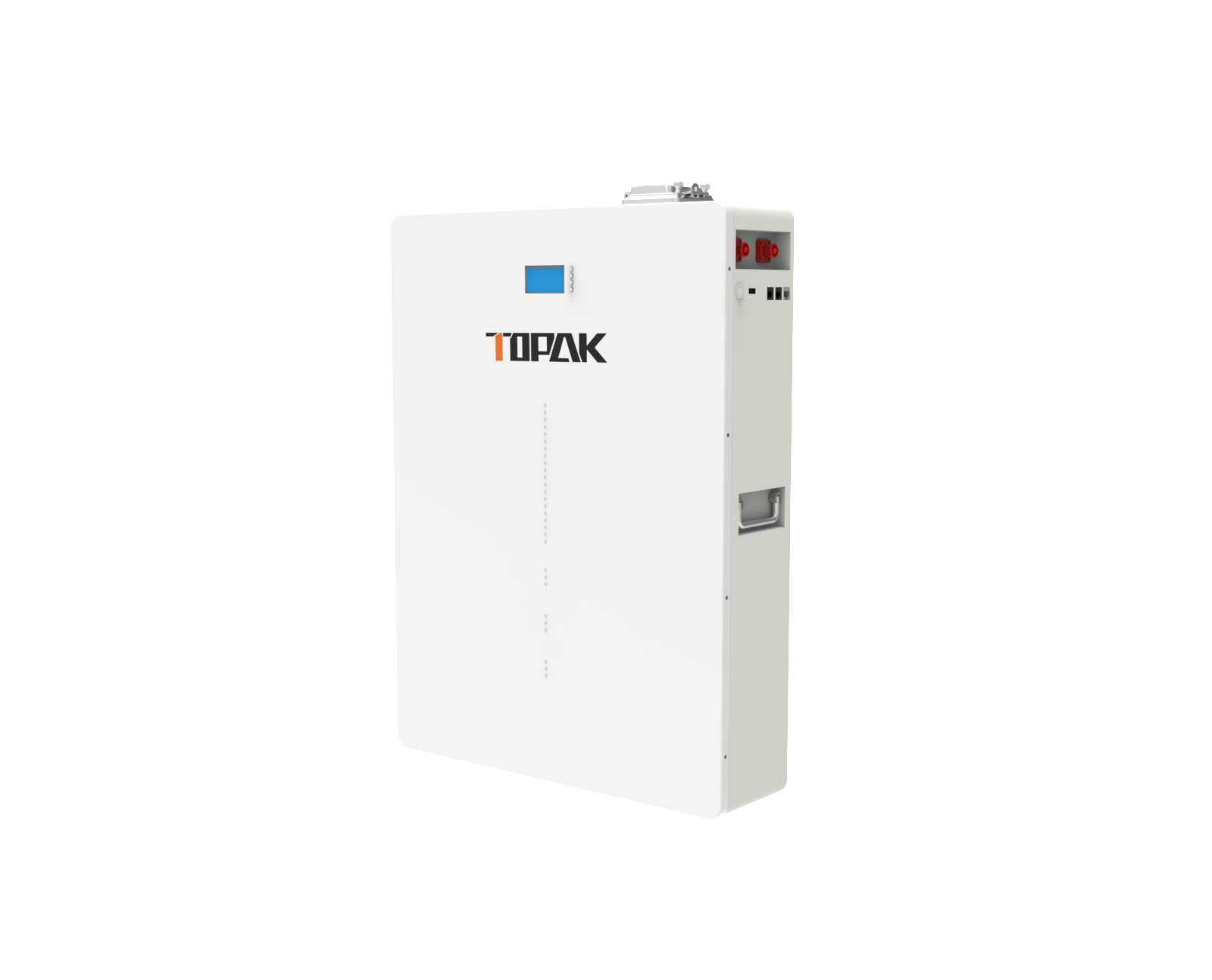

Wall-mounted 51.2V 200Ah
|
Voltage(V)
|
43.2~58.4V
|
|
Battery Cell
|
3.2V200Ah
|
|
Module
|
16S1P
|
|
Number of parallel machines
|
15PCS
|
|
Nominal voltage(V)
|
51.2
|
|
Nominal Capacity(Ah)
|
200
|
|
Nominal Energy(kWh)
|
10.24
|
|
Maximum power output(kW)
|
5.12
|
|
Maximum discharge current(A)
|
100
|
|
Maximum charging current(A)
|
100 |
|
Cut-off voltage(V)
|
40 |
|
Maximum charge voltage(V)
|
58.4
|
|
Cycles(25℃)
|
≥6000
|
|
Charging temperature(℃)
|
0~55
|
|
Discharge temperature(℃)
|
-20~55
|
|
Operating humidity
|
<95%R.H
|
|
Communication mode
|
CAN/RS485
|
|
Dry contact
|
Customized by demand
|
|
Optional modules
|
Bluetooth, 4G module
|
|
Product size(W*D*H,mm)
|
650*525*195
|
|
Packing size(W*D*H,mm)
|
722*597*315
|
|
Protection class
|
IP21
|
|
System weight(kg)
|
Approx 88
|
|
Certification
|
IEC62619/UN38.3/MSDS
|
